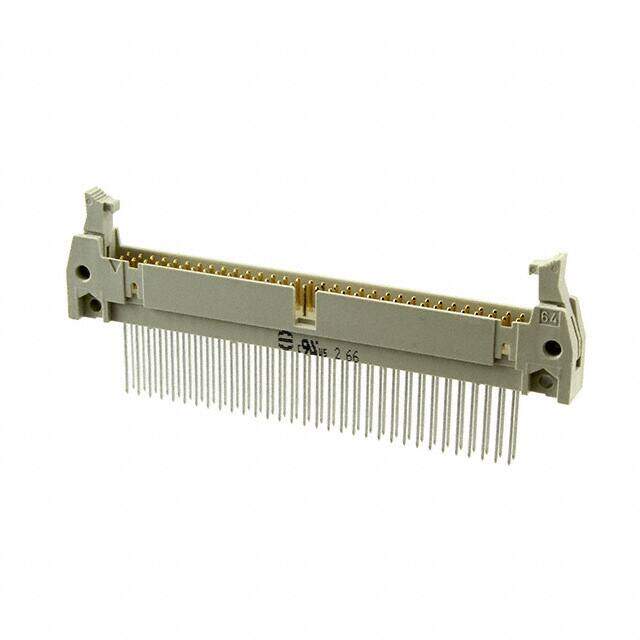

09185646907
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SEK RoHS Compliant COMMERCIAL UL Connector Header -55C~125C 2A 1000VAC V 0.331inch
PDF
/
Inventory: 7848
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Wrap
Dielectric Withstanding Voltage 1000VAC V
Polarization Key CTR W/GUIDE SLOTS
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Overall Contact Length 1.126 28.60mm
Rated Current (Signal) 1A
Body Depth 0.681 inch
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.331 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.228 5.80mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.591 15.00mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 4.484 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Latch Lock/Eject Hooks, Long
HTS Code 8536.69.40.40
Additional Feature STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED
Number of Rows 2
Color Beige
Number of Positions 64
Connector Type Header
ECCN Code EAR99
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.591 inch
