09185406904
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

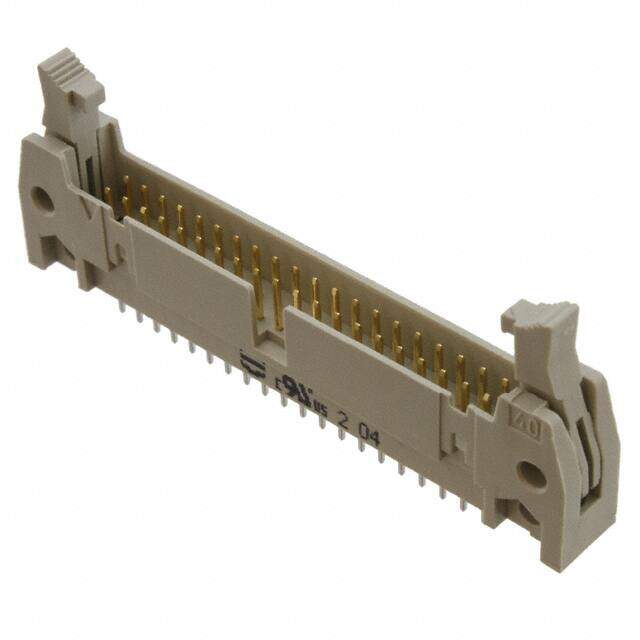

CONN HEADER VERT 40POS 2.54MM
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.522421
≥1 USD $3.522421
≥10 USD $3.323037
≥100 USD $3.134942
≥500 USD $2.95749
≥1000 USD $2.790081
Inventory: 1981
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 70.4mm
Technical
Hole Diameter 900 μm
Contact Current Rating 1A
Number of Poles 40
Dielectric Withstanding Voltage 1000VAC V
Polarization Key CTR W/GUIDE SLOTS
Mating Contact Pitch 0.1 inch
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Overall Contact Length 0.650 16.51mm
Rated Current (Signal) 1A
Working Voltage 350V
Lead Length 29mm
UL Flammability Code 94V-0
Body Breadth 0.331 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.228 5.80mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Depth 8.5mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 350V
Fastening Type Latch Lock/Eject Hooks, Long
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Gender Male
Number of Rows 2
Color Grey
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Package / Case SMC
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
