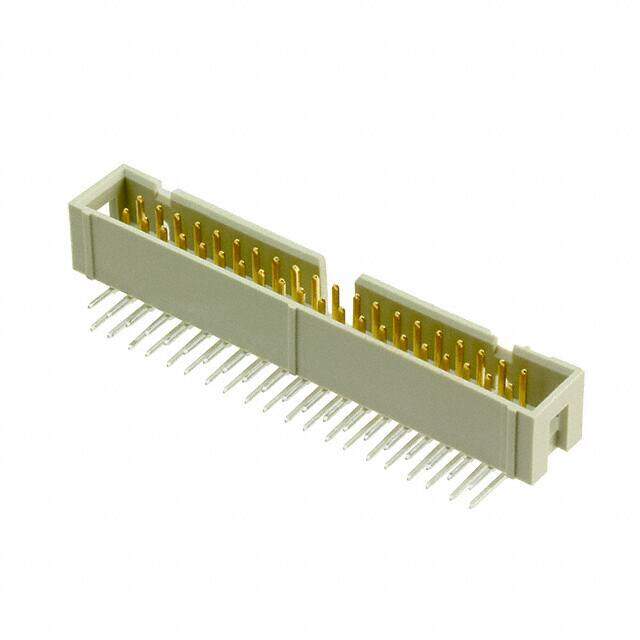

09185405323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings SEK-18 SV ML LP ANG29 40P AU0.76
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.816
≥1 USD $2.816
≥10 USD $2.361744
≥100 USD $2.24928
≥500 USD $1.98
Inventory: 58
Minimum: 1
-
+
Technical Details
Technical
Number of Positions 40
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Dielectric Withstanding Voltage 1000VAC V
Polarization Key CTR W/GUIDE SLOTS
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 1A
Body Depth 0.48 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.242 6.15mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.366 9.30mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Number of Rows 2
Color Grey
Physical
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
