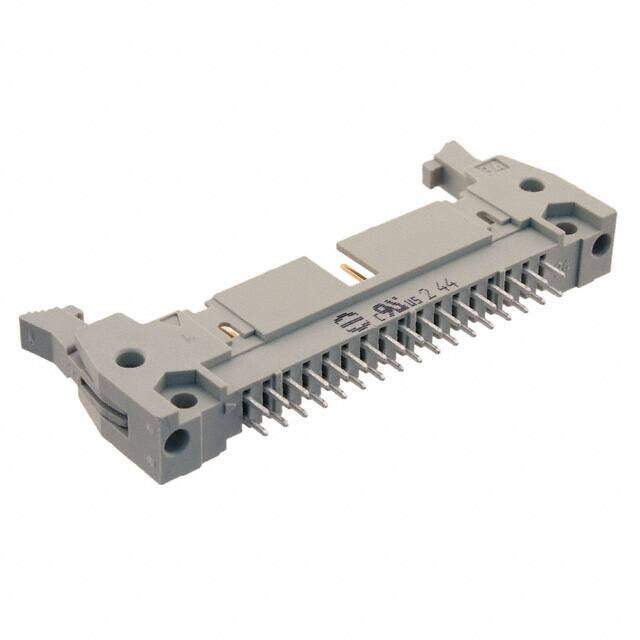

09185346902
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings SEK-18 SV ML STD STR45 RLG 34P AU2
PDF
/
Buying Options
Total Price: USD $4.24
Unit Price: USD $4.236761
≥1 USD $4.236761
≥10 USD $3.996943
≥100 USD $3.770699
≥500 USD $3.55727
≥1000 USD $3.355908
Inventory: 6775
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 34
Color Grey
Number of Rows 2
Gender Male
Voltage - Rated 500V
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 8.5mm
Insulation Height 0.681 17.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.177 4.50mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.331 inch
UL Flammability Code 94V-0
Rated Current (Signal) 1A
Overall Contact Length 0.713 18.10mm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key CTR W/GUIDE SLOTS
Dielectric Withstanding Voltage 1000VAC V
Dimensions
Length 62.8mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
