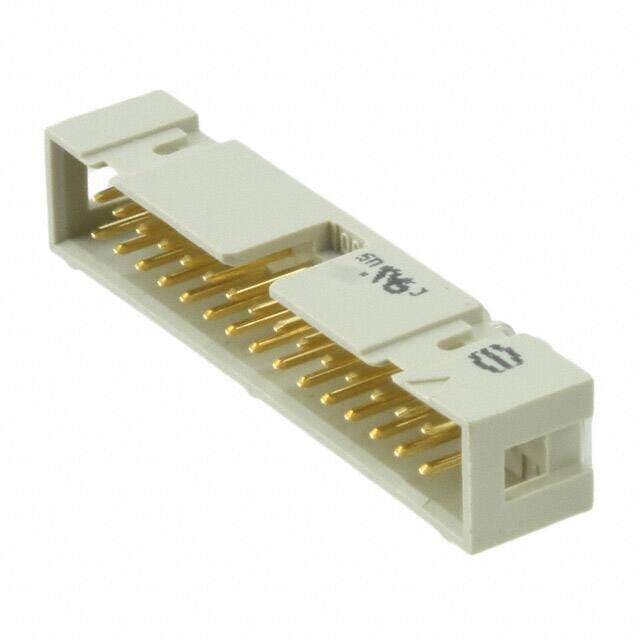

09185306323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 30POS 2.54MM
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6256
≥1 USD $3.6256
≥10 USD $3.28856
≥100 USD $2.897488
≥500 USD $2.462874
≥1000 USD $2.100683
Inventory: 197
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 30
Number of Rows 2
Fastening Type Latch Holder
Contact Type Male Pin
Insulation Height 0.366 9.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.242 6.15mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
