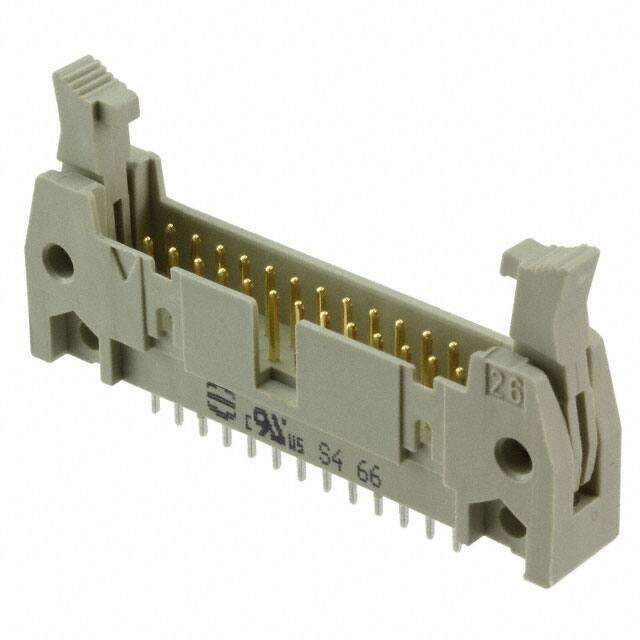

09185305904
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings SEK18 SVML STD STR29 RLG 30P AU0.76
PDF
/
Buying Options
Total Price: USD $6.51
Unit Price: USD $6.507024
≥1 USD $6.507024
≥10 USD $6.138705
≥100 USD $5.791224
≥500 USD $5.463422
≥1000 USD $5.154171
Inventory: 952
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot, Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 30
Color Grey
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.681 17.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
Overall Contact Length 0.650 16.51mm
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
