09185266329
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

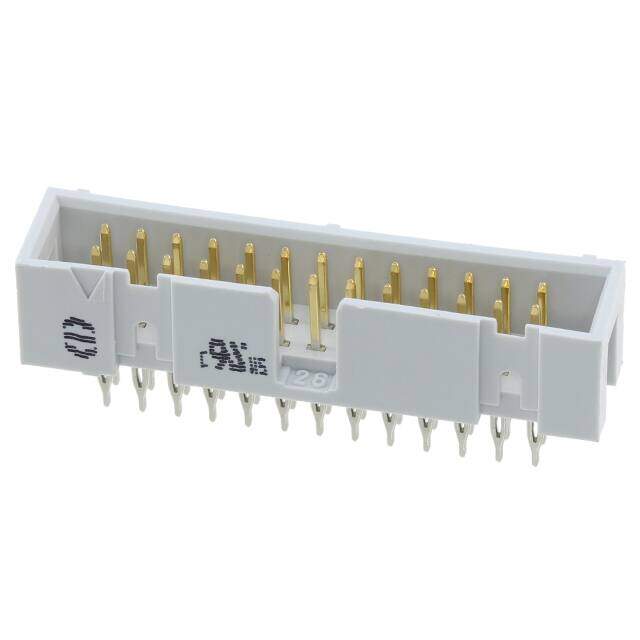

Harting SEK 18 Series, 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Press-In Termination
PDF
/
Buying Options
Total Price: USD $4.09
Unit Price: USD $4.092
≥1 USD $4.092
≥10 USD $3.71272
≥100 USD $3.270784
≥500 USD $2.780166
≥1000 USD $2.371318
Inventory: 255
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Bulk
Series SEK
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 26
Color Grey
Number of Rows 2
Gender Male
Additional Feature STANDARDS: MIL-C-83503; DIN 41651, POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Insulation Height 0.350 8.89mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.606 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.217 5.51mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Body Breadth 0.366 inch
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
