09185266324001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

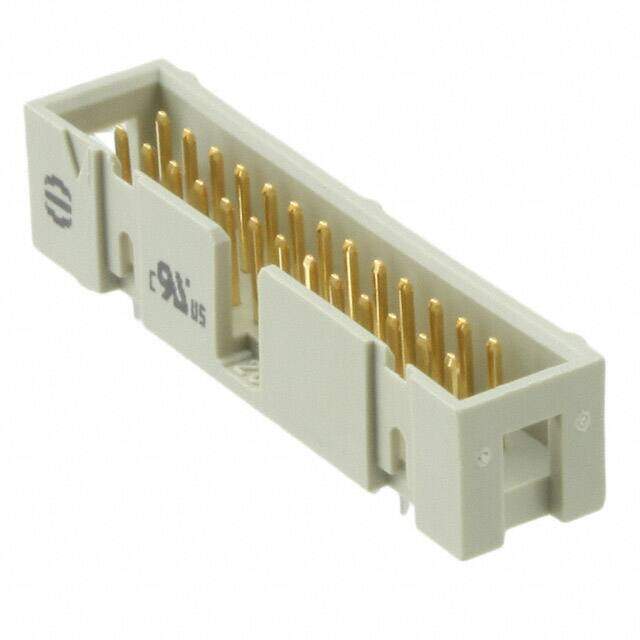

CONN HEADER VERT 26POS 2.54MM
PDF
/
Inventory: 2091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Technical
Packaging Bulk
Series SEK
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 26
Number of Rows 2
Fastening Type Latch Holder
Contact Type Male Pin
Insulation Height 0.350 8.89mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.606 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.366 inch
Operating Temperature (Min) -55°C
Rated Current (Signal) 2A
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dimensions
Length - Termination 0.114 inch
Compliance
RoHS Status ROHS3 Compliant
