09185207904
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

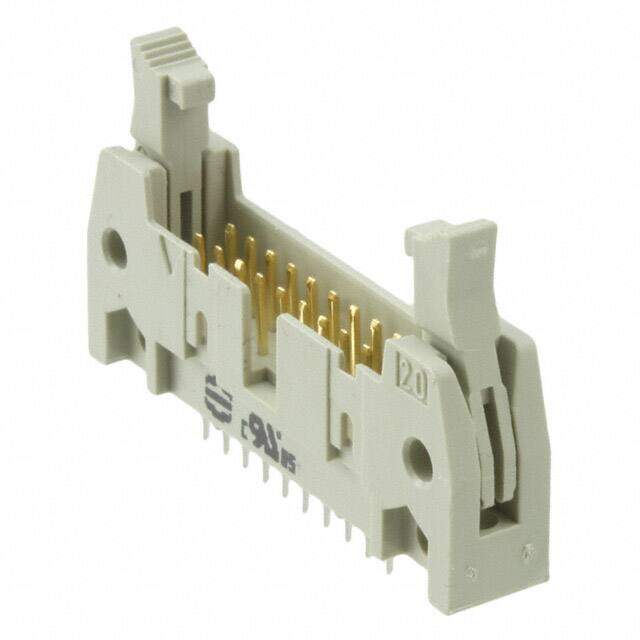

HEADER, STRAIGHT, L/LATCH, 20WAY
PDF
/
Inventory: 7385
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Color Grey
Number of Rows 2
Gender Male
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks, Long
Voltage - Rated DC 350V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 8.5mm
Insulation Height 0.681 17.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 350V
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.331 inch
UL Flammability Code 94V-0
Lead Length 29mm
Working Voltage 350V
Rated Current (Signal) 1A
Overall Contact Length 0.650 16.51mm
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Mating Contact Pitch 0.1 inch
Hole Diameter 900 μm
Number of Poles 20
Durability 50 Cycles
Dielectric Withstanding Voltage 1000VAC V
Polarization Key CTR W/GUIDE SLOTS
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 45mm
