09185206924
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

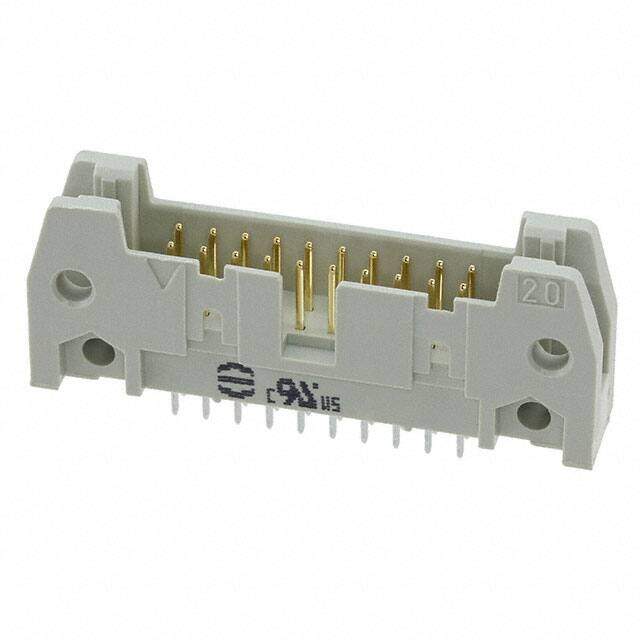

Headers & Wire Housings 20P MALE STRT IDC NO LEVERS
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.9888
≥1 USD $1.9888
≥10 USD $1.7336
≥100 USD $1.549152
≥500 USD $1.290978
≥1000 USD $1.106556
≥3000 USD $0.981147
Inventory: 51
Minimum: 1
-
+
Technical Details
Technical
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.335 inch
Contact Gender Male
UL Flammability Code 94V-0
Body Depth 0.681 inch
Rated Current (Signal) 2A
Overall Contact Length 0.650 16.51mm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Number of Rows 2
Color Grey
Number of Positions 20
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length - Termination 0.114 inch
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
