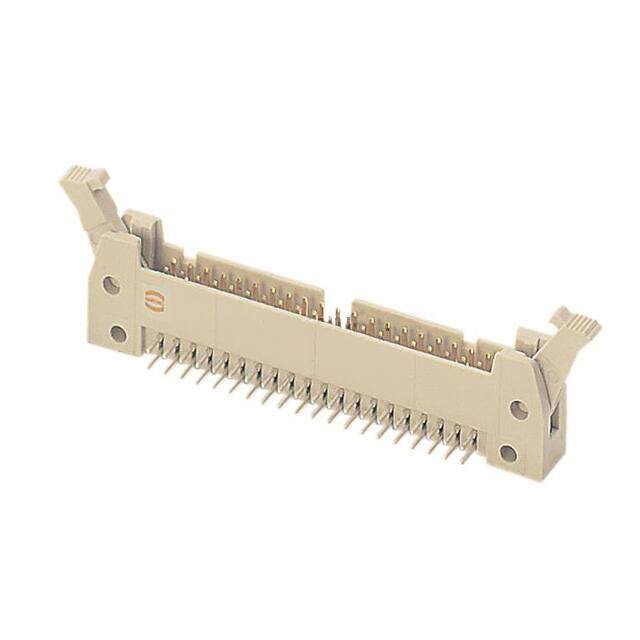

09185205903
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings SEK18 SVML STD ANG29 RLG 20P AU0.76
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
≥10 USD $2.04248
≥100 USD $1.799424
≥500 USD $1.584
Inventory: 3627
Minimum: 1
-
+
Technical Details
Technical
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 9.2mm
Insulation Height 0.335 8.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Approval Agency IEC
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.335 inch
Contact Gender Male
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Insulation Resistance 1000000000Ohm
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Long
Number of Rows 2
Color Grey
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Physical
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Width 8.5mm
Length 33mm
