09185167914
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

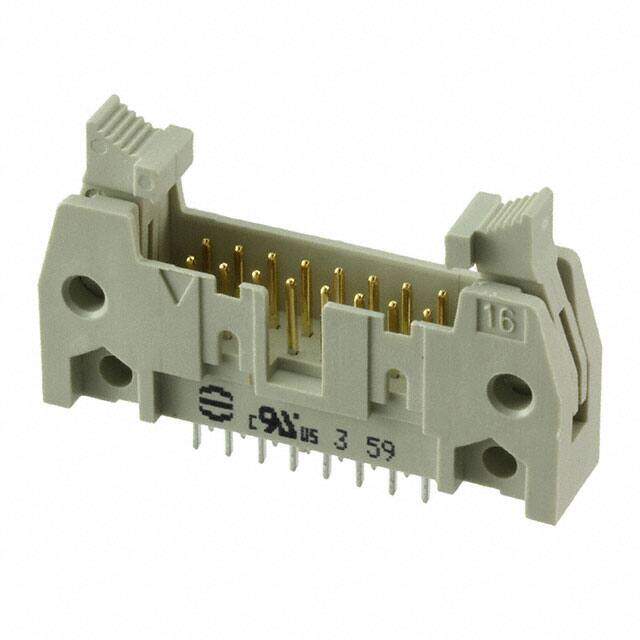

HEADER, STRAIGHT, S/LATCH, 16WAY
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.2396
≥100 USD $1.973136
≥500 USD $1.677174
≥1000 USD $1.430528
≥3000 USD $1.282538
Inventory: 127
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polybutylene
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Color Grey
Number of Rows 2
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks, Short
Voltage - Rated DC 350V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 8.5mm
Insulation Height 0.681 17.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 350V
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.335 inch
Contact Gender Male
UL Flammability Code 94V-0
Working Voltage 350V
Rated Current (Signal) 2A
Overall Contact Length 0.650 16.51mm
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Mating Contact Pitch 0.1 inch
Max Current Rating 1A
Polarization Key POLARIZED HOUSING
Durability 50 Cycles
Number of Poles 16
Dimensions
Length 39.9mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
