Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

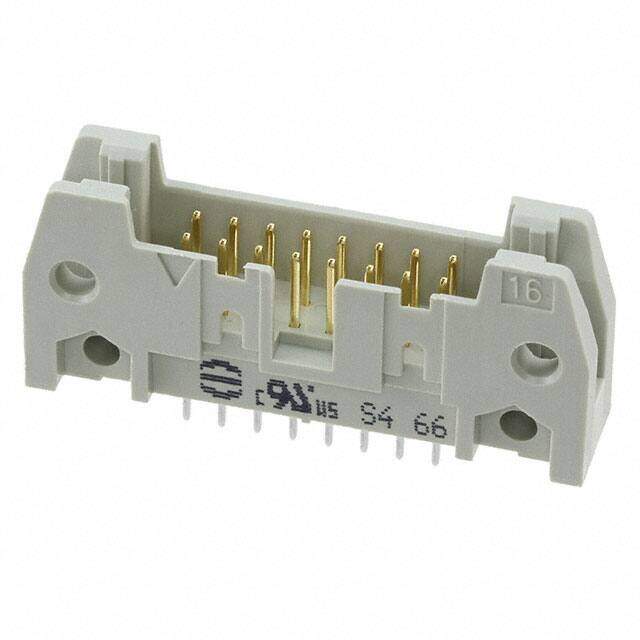

Headers & Wire Housings SEK-18 SV ML STD STR29 16P AU0.76
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.376
≥1 USD $2.376
≥10 USD $2.068
≥100 USD $1.847824
≥500 USD $1.539842
≥1000 USD $1.319868
≥3000 USD $1.170286
Inventory: 102
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Technical
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Overall Contact Length 0.650 16.51mm
Rated Current (Signal) 2A
Body Depth 0.681 inch
UL Flammability Code 94V-0
Body Breadth 0.335 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.571 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Number of Rows 2
Color Grey
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
