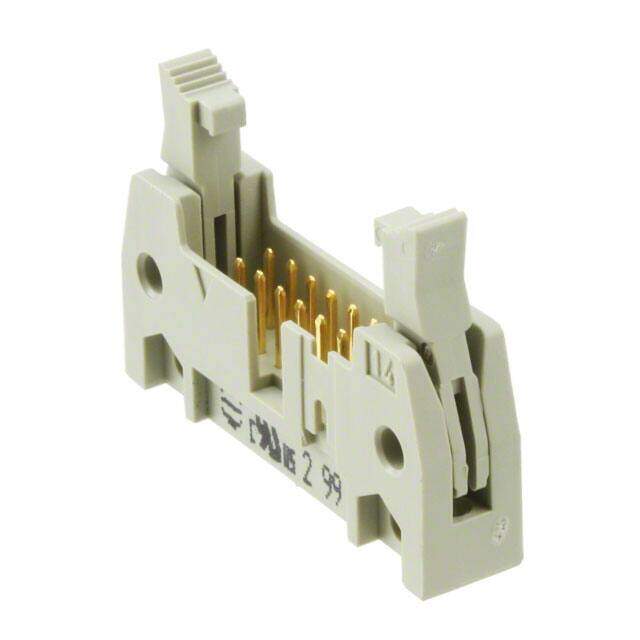

09185146903
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SEK ROHS3Compliant COMMERCIAL UL Connector Header UL94V-0 20mOhm -55C~125C 1A
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.1384
≥1 USD $2.1384
≥10 USD $1.85856
≥100 USD $1.661176
≥500 USD $1.38431
≥1000 USD $1.186548
≥3000 USD $1.052075
Inventory: 3800
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 37.4mm
Technical
Hole Diameter 900 μm
Contact Current Rating 1A
Number of Poles 14
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Rated Current (Signal) 2A
Working Voltage 350V
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.335 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.335 8.51mm
Depth 25.75mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 350V
Fastening Type Latch Lock/Eject Hooks, Long
HTS Code 8536.69.40.40
Additional Feature STANDARDS: IEC 60603-13; DIN EN 60603-13
Number of Rows 2
Color Grey
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
