09185107914
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

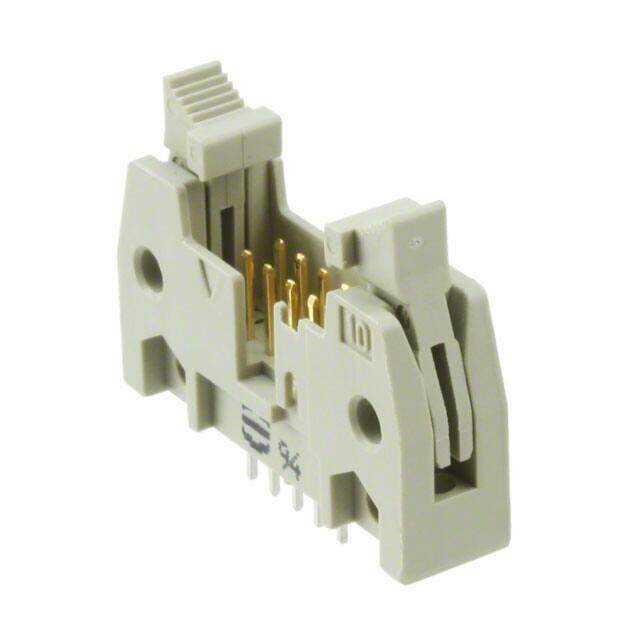

HEADER, STRAIGHT, S/LATCH, 10WAY
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.0064
≥1 USD $2.0064
≥10 USD $1.74504
≥100 USD $1.559096
≥500 USD $1.29925
≥1000 USD $1.113649
≥3000 USD $1.039403
Inventory: 367
Minimum: 1
-
+
Technical Details
Technical
PCB Contact Pattern RECTANGULAR
Body Breadth 0.335 inch
UL Flammability Code 94V-0
Working Voltage 350V
Rated Current (Signal) 2A
Overall Contact Length 0.650 16.51mm
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Mating Contact Pitch 0.1 inch
Max Current Rating 1A
Polarization Key POLARIZED HOUSING
Durability 50 Cycles
Number of Poles 10
Contact Length - Mating 0.228 5.80mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Depth 8.5mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 350V
Fastening Type Latch Lock/Eject Hooks, Short
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13
Gender Male
Number of Rows 2
Color Grey
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Tray
Operating Temperature -55°C~125°C
Dimensions
Length 32.3mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
