09185106924
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

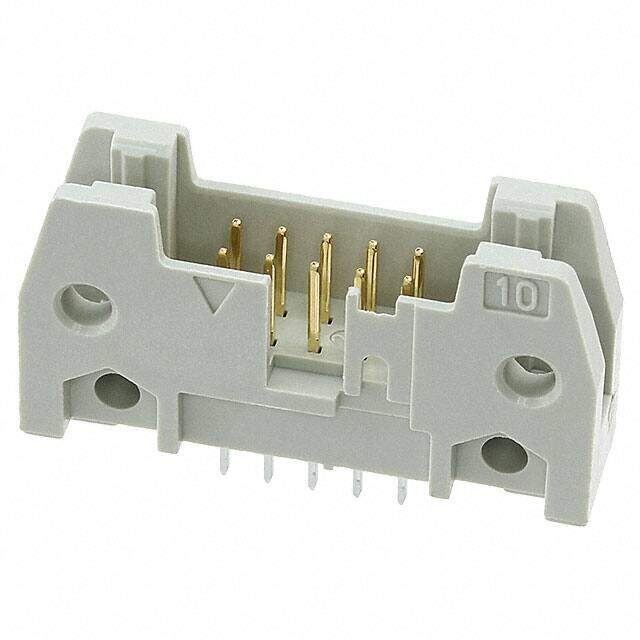

Headers & Wire Housings SEK-18 SV ML STD STR29 10P PL2
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.0416
≥1 USD $2.0416
≥10 USD $1.78024
≥100 USD $1.59104
≥500 USD $1.325878
≥1000 USD $1.136458
≥3000 USD $1.060699
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 32.3mm
Technical
Test Voltage 1kV
Polarization Key POLARIZED HOUSING
Max Current Rating 1A
Mating Contact Pitch 0.1 inch
Contact Resistance 20mOhm
Overall Contact Length 0.650 16.51mm
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Body Breadth 0.335 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Depth 8.5mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13
Gender Male
Number of Rows 2
Color Grey
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
