09185106913
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

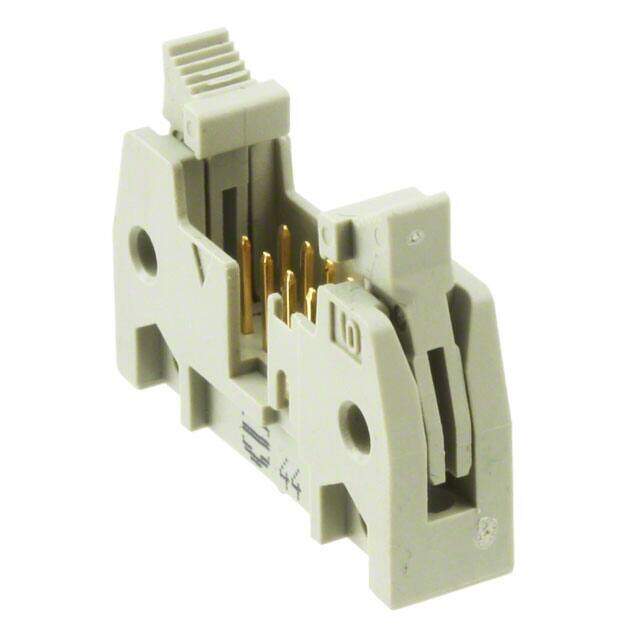

CONN HEADER R/A 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.022871
≥1 USD $2.022871
≥10 USD $1.908366
≥100 USD $1.800344
≥500 USD $1.698447
≥1000 USD $1.602303
Inventory: 8673
Minimum: 1
-
+
Technical Details
Dimensions
Length 32.3mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Technical
Polarization Key CTR W/GUIDE SLOTS
Max Current Rating 1A
Mating Contact Pitch 0.1 inch
Contact Resistance 20mOhm
Rated Current (Signal) 1A
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.331 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.335 8.51mm
Depth 23.3mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Latch Lock/Eject Hooks, Short
HTS Code 8536.69.40.40
Additional Feature STANDARDS: IEC 60603-13; DIN EN 60603-13
Number of Rows 2
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
