09185106329
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

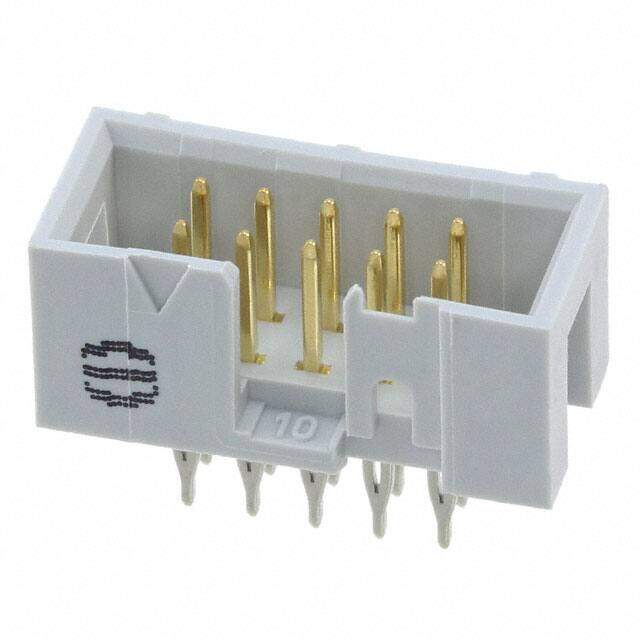

Headers & Wire Housings SEK-18 SV ML LP STR55 PR-IN 10P PL2
PDF
/
Inventory: 1320
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Tray
Series SEK
JESD-609 Code e3
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Grey
Number of Rows 2
Gender Male
Additional Feature STANDARDS: MIL-C-83503; DIN 41651
HTS Code 8536.69.40.40
Fastening Type Push-Pull
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Insulation Height 0.350 8.89mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.807 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.217 5.51mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.366 inch
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
