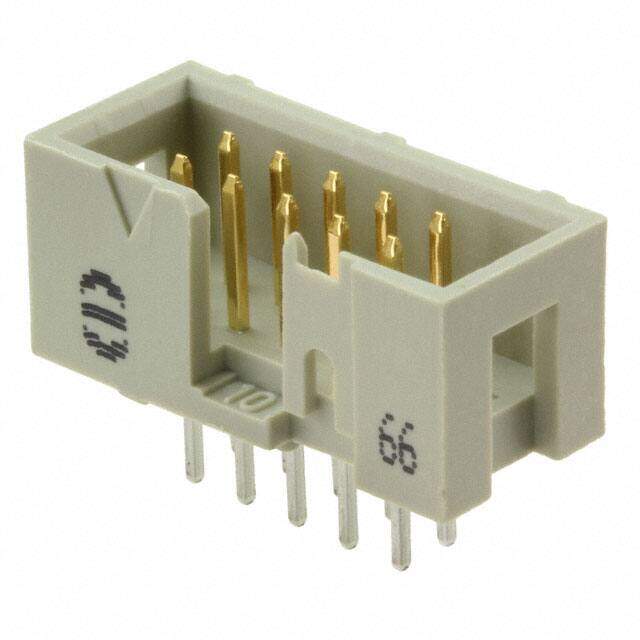

09185105324
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings SEK-18 SV ML LP STR29 10P AU0.76
PDF
/
Buying Options
Total Price: USD $2.18
Unit Price: USD $2.1824
≥1 USD $2.1824
≥10 USD $1.9008
≥100 USD $1.698488
≥500 USD $1.41541
≥1000 USD $1.213212
≥3000 USD $1.075712
Inventory: 149
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Color Grey
Number of Rows 2
Gender Male
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 9.2mm
Insulation Height 0.350 8.89mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.242 6.15mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.366 inch
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dimensions
Length 20.32mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
