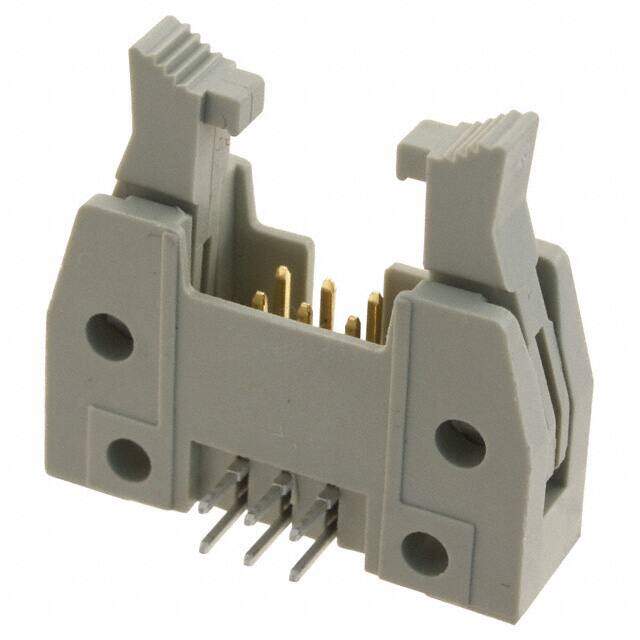

09185066903
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 6POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.804
≥1 USD $1.804
≥10 USD $1.5664
≥100 USD $1.399904
≥500 USD $1.166546
≥1000 USD $0.9999
≥3000 USD $0.886582
Inventory: 76
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Insulation Height 0.335 8.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.071 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.335 inch
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dimensions
Length - Termination 0.114 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
