09185066323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

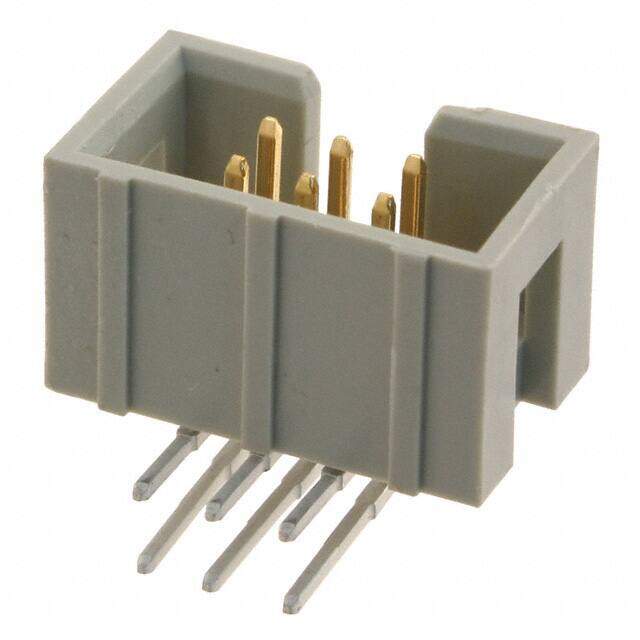

Conn Shrouded Header (4 Sides) M 6 POS 2.54mm Solder RA Thru-Hole Standard
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.25312
≥100 USD $1.119888
≥500 USD $0.93324
≥1000 USD $0.79992
≥3000 USD $0.746592
Inventory: 278
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polybutylene
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Series SEK
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Color Grey
Number of Rows 2
Fastening Type Latch Holder
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 11.99mm
Insulation Height 0.366 9.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.242 6.15mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 29mm
Rated Current (Signal) 1A
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Max Current Rating 1A
Polarization Key CTR W/GUIDE SLOTS
Dielectric Withstanding Voltage 1000VAC V
Test Voltage 1kV
Dimensions
Height 12.2mm
Length 15.24mm
Width 15.4mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
