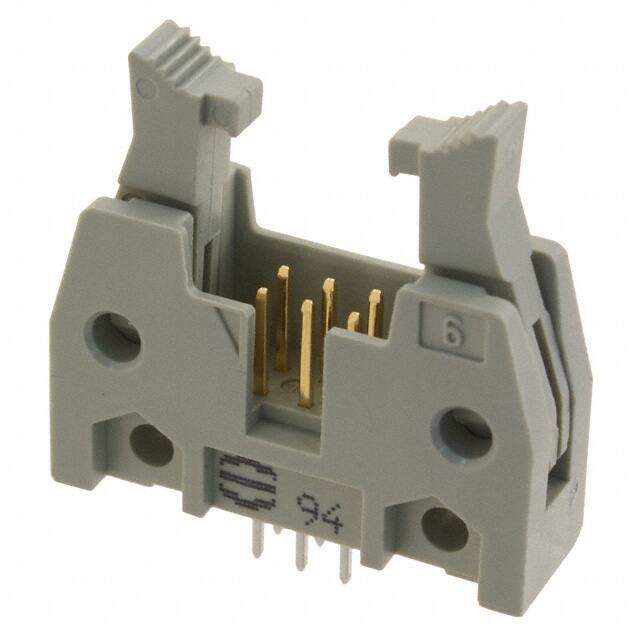

09185065902

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings SEK18 SVML STD STR45 RLG 06P AU0.76
PDF
/
Inventory: 6895
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length - Termination 0.177 inch
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin

Technical

Dielectric Withstanding Voltage 1000VAC V
Polarization Key CTR W/GUIDE SLOTS
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Overall Contact Length 0.713 18.10mm
Rated Current (Signal) 1A
UL Flammability Code 94V-0
Body Breadth 0.331 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.177 4.50mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.587 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Gray
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Long
Number of Rows 2
Color Grey
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 7 Weeks

Alternative Model
