572-003-420-101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

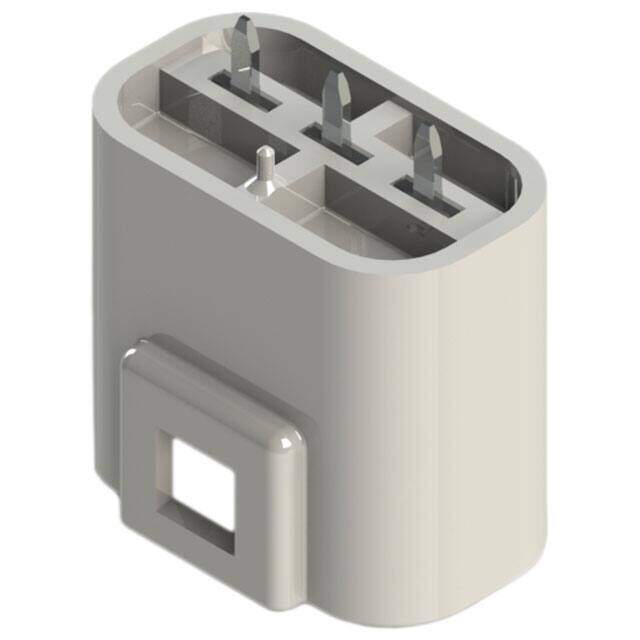

EDAC 572-003-420-101 CONNECTOR, PLUG, 3POS, 5.8MM
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.933571
≥1 USD $1.933571
≥10 USD $1.824126
≥100 USD $1.720874
≥500 USD $1.623466
≥1000 USD $1.531569
Inventory: 2724
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2010
Series 572
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 3
Applications Automotive, General Purpose
Number of Rows 1
Gender Male
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 10A
Ingress Protection IP67
Insulation Height 0.768 19.50mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.228 5.80mm
Insulation Color White
Shrouding Shrouded - 4 Wall
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
