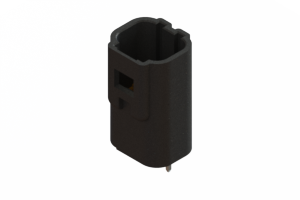

566-003-421-701

EDAC Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 3POS 2MM
PDF
/
Inventory: 5113
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.598 15.19mm
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 2A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose
Number of Positions 3
Connector Type Plug
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 566
Published 2010
Packaging Bulk
Operating Temperature -40°C~105°C
Shrouding Shrouded - 4 Wall
Insulation Color Black
Pitch - Mating 0.079 2.00mm

Physical

Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 17 Weeks

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
