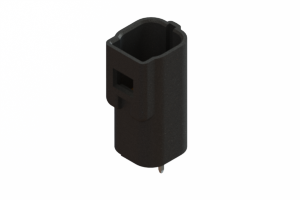

566-002-421-701
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 2POS 2MM
PDF
/
Inventory: 3505
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2010
Series 566
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug
Number of Positions 2
Applications Automotive, General Purpose
Number of Rows 1
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Insulation Height 0.598 15.19mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Shrouding Shrouded - 4 Wall
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
