560-003-420-101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

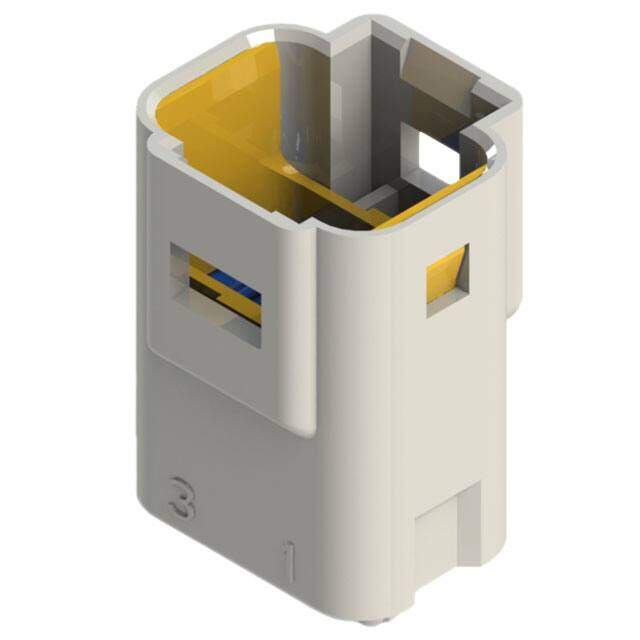

EDAC 560-003-420-101 CONNECTOR, PLUG, 3POS, 2.5MM
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.811755
≥1 USD $1.811755
≥10 USD $1.709201
≥100 USD $1.612458
≥500 USD $1.52118
≥1000 USD $1.435079
Inventory: 8686
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Technical
Shrouding Shrouded - 4 Wall
Insulation Color White
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.610 15.49mm
Ingress Protection IP67
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 250V
Gender Male
Number of Rows 1
Applications Automotive, General Purpose
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 560
Published 2010
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
