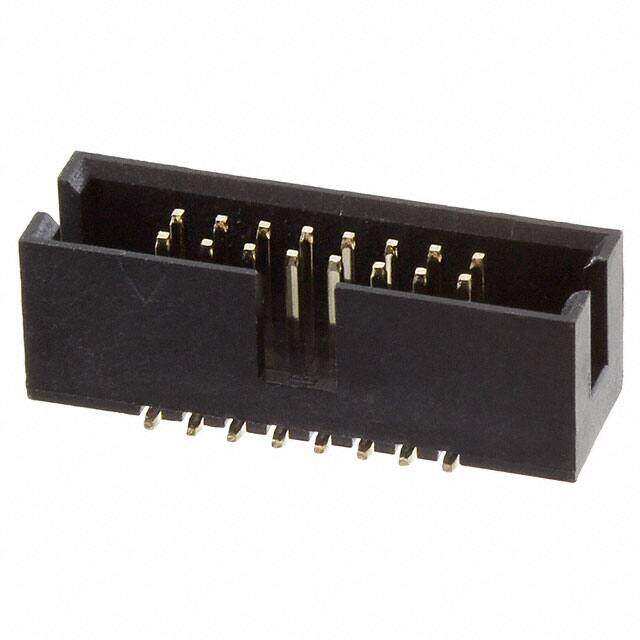

3221-16-0300-00
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 16POS 1.27MM
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.1616
≥1 USD $1.1616
≥10 USD $0.98032
≥100 USD $0.879894
≥500 USD $0.719919
≥1000 USD $0.579946
≥3000 USD $0.559944
Inventory: 10374
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2014
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 16
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A
Total Number of Contacts 16
Insulation Height 0.213 5.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
