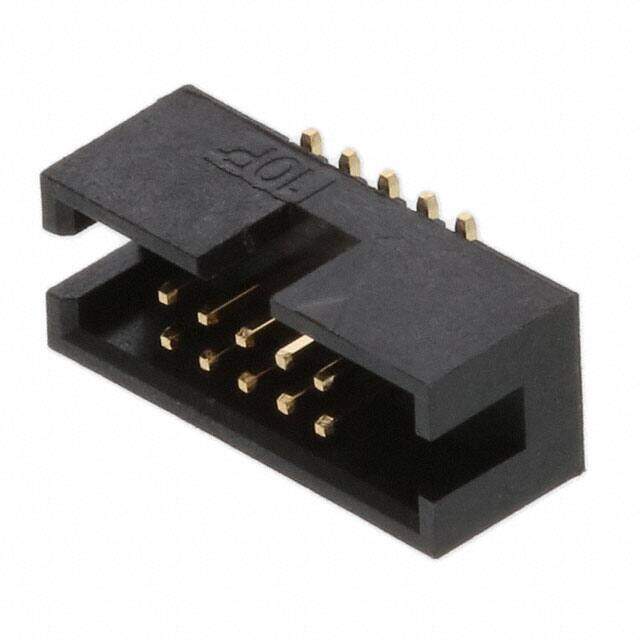

3221-10-0300-00-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 10POS 1.27MM
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Brass
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Insulation Height 0.213 5.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
