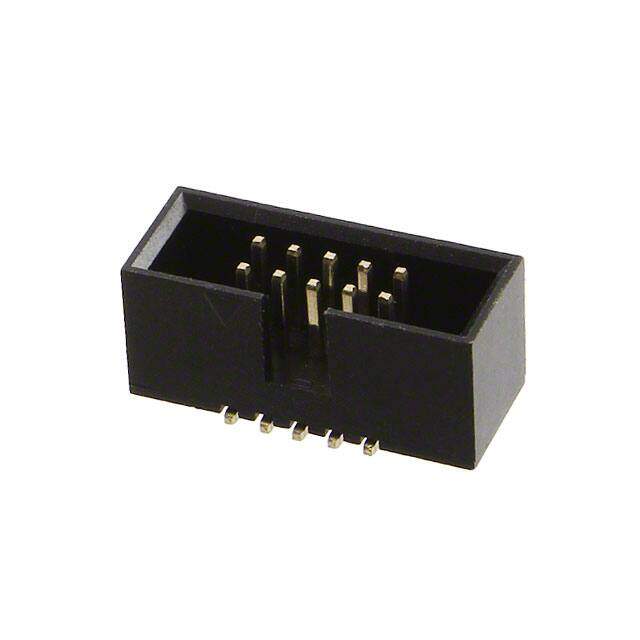

3220-10-0300-00
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.59488
≥100 USD $0.4906
≥500 USD $0.426624
≥1000 USD $0.319968
≥3000 USD $0.309302
Inventory: 506830
Minimum: 1
-
+
Technical Details
Technical
JESD-609 Code e4
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Published 2014
Packaging Tray
Operating Temperature -40°C~105°C
UL Flammability Code 94V-0
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.213 5.40mm
Total Number of Contacts 10
Option GENERAL PURPOSE
Physical
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 18 Weeks
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Height 5.8mm
