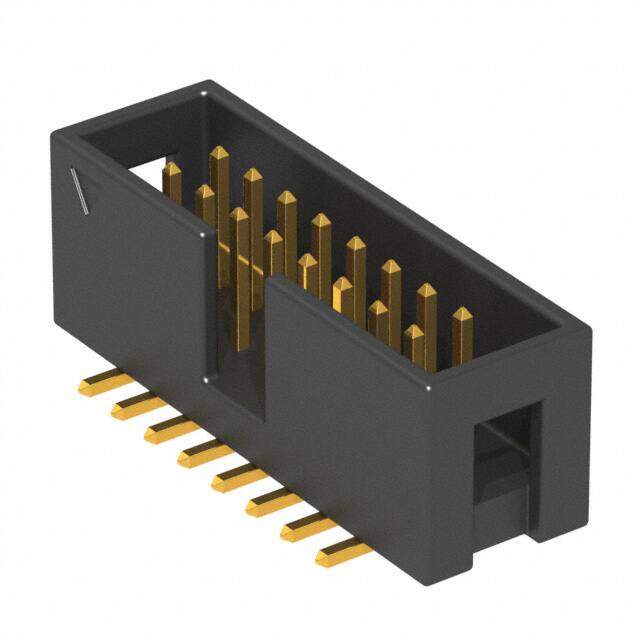

3020-16-0300-00
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 16POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.63184
≥100 USD $0.567054
≥500 USD $0.463962
≥1000 USD $0.412403
≥3000 USD $0.360853
Inventory: 28747
Minimum: 1
-
+
Technical Details
Technical
Current Rating (Amps) 1A
Total Number of Contacts 16
Insulation Height 0.354 9.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
UL Flammability Code 94V-0
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot
Published 2014
Packaging Tray
Operating Temperature -40°C~105°C
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 18 Weeks
