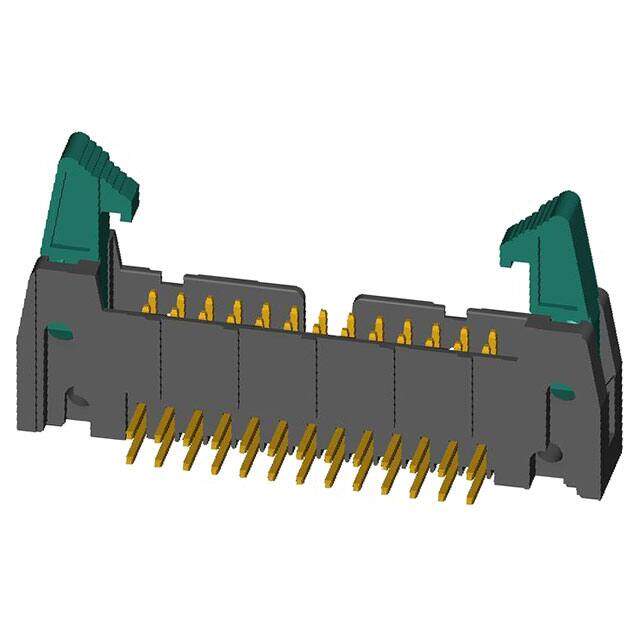

3010-26-002-13-99
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 26POS 2.54MM
PDF
/
Inventory: 9158
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 26
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 1A
Pitch 2.54mm
Insulation Height 0.323 8.20mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.134 3.40mm
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating 80.0μin 2.03μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
