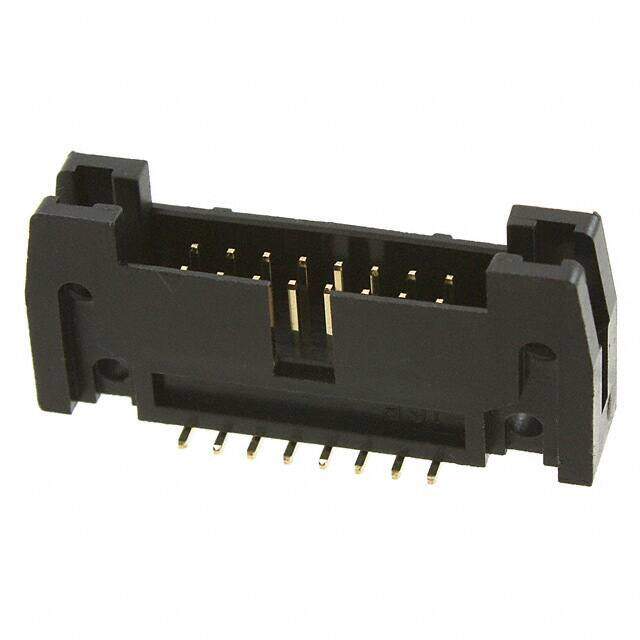

3010-16-003-11-00
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
HEADER 0.100 16 POSITIONS SMD
PDF
/
Inventory: 8325
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 100
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2014
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 16
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Pitch 2.54mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
