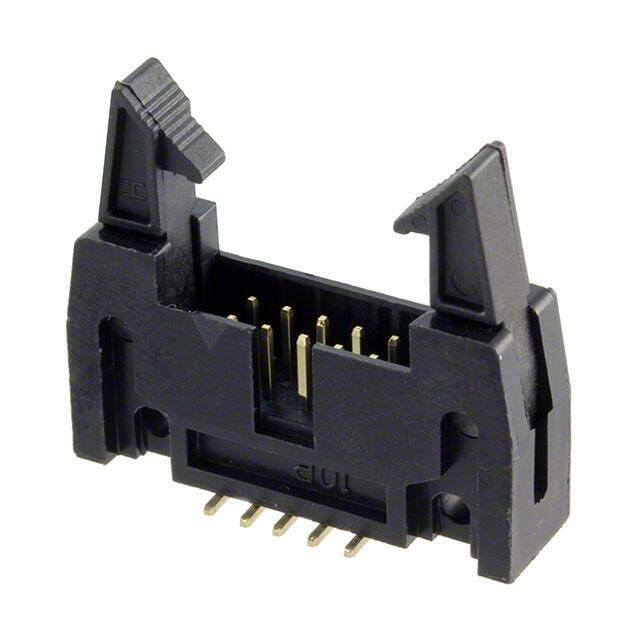

3010-10-003-13-00
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.1352
≥1 USD $1.1352
≥10 USD $0.95832
≥100 USD $0.860314
≥500 USD $0.684376
≥1000 USD $0.586608
≥3000 USD $0.547501
Inventory: 510
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
UL Flammability Code 94V-0
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Total Number of Contacts 10
Current Rating (Amps) 1A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Long
Number of Rows 2
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot
Published 2014
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 18 Weeks
