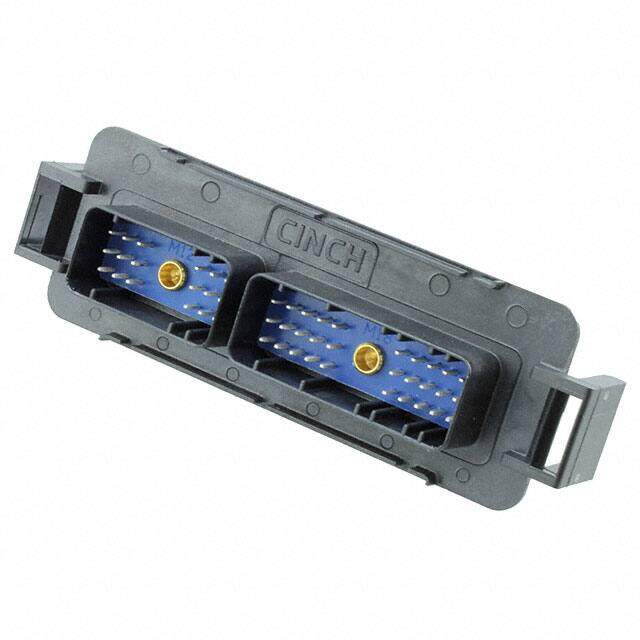

5810148007 image
Favorite
5810148007 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 48POS
PDF
/
Buying Options
Total Price: USD $27.19
Unit Price: USD $27.187737
≥1 USD $27.187737
≥10 USD $25.648804
≥100 USD $24.196991
≥500 USD $22.827348
≥1000 USD $21.535232
Inventory: 7382
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Empty Shell NO
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color Black
Number of Positions Loaded All
Style Board to Cable/Wire
Ingress Protection IP67/69K - Dust Tight, Water Resistant, Waterproof
Current Rating (Amps) 10A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Threaded
Number of Rows 3
Applications Automotive
Number of Positions 48
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ferrite Filter
JESD-609 Code e3
Series ModICE? SE
Published 2006
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Material Glass
Insulation Material Polymer, Glass Filled
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Contact Material Brass

Supply Chain

Factory Lead Time 12 Weeks
