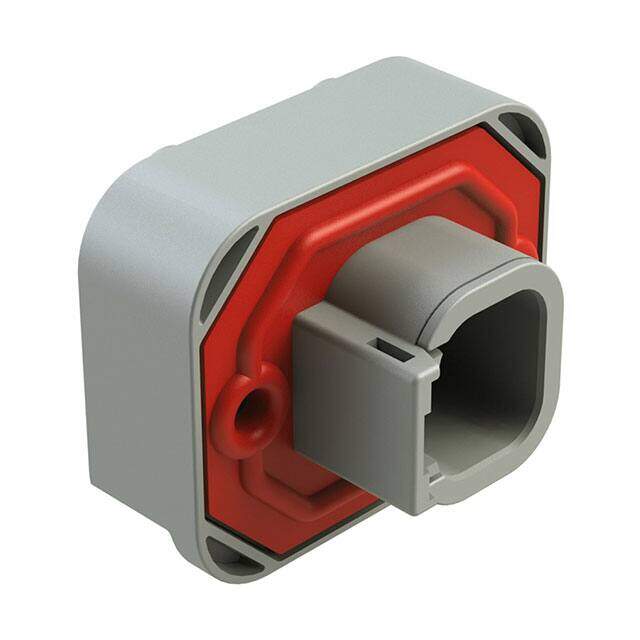

ATM15-4P-BM04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 4POS
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Thermoplastic
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Series BoardLock? ATM
Feature Board Guide, Mating Flange, Mounting Flange, Potting Wall
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 4
Applications Automotive, Industrial
Number of Rows 2
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 7.5A
Ingress Protection IP67
Insulation Height 1.189 30.20mm
Style Board to Cable/Wire
Number of Positions Loaded All
Insulation Color Gray
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Compliance
RoHS Status ROHS3 Compliant
