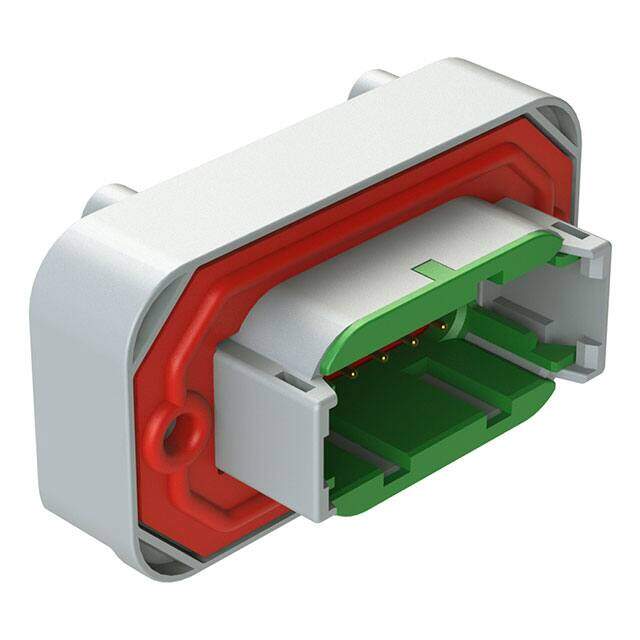

ATM13-12PC-BM02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
BoardLock? ATM ROHS3Compliant IP67 Board Guide Mating Flange Mounting Flange Potting Wall Connector Receptacle -55C~125C 7.5A 250V 0.120 3.05mm
PDF
/
Inventory: 8690
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Thermoplastic
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Series BoardLock? ATM
Feature Board Guide, Mating Flange, Mounting Flange, Potting Wall
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Applications Automotive, Industrial
Number of Rows 2
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 7.5A
Ingress Protection IP67
Insulation Height 1.303 33.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Insulation Color Gray
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Gold
Compliance
RoHS Status ROHS3 Compliant
