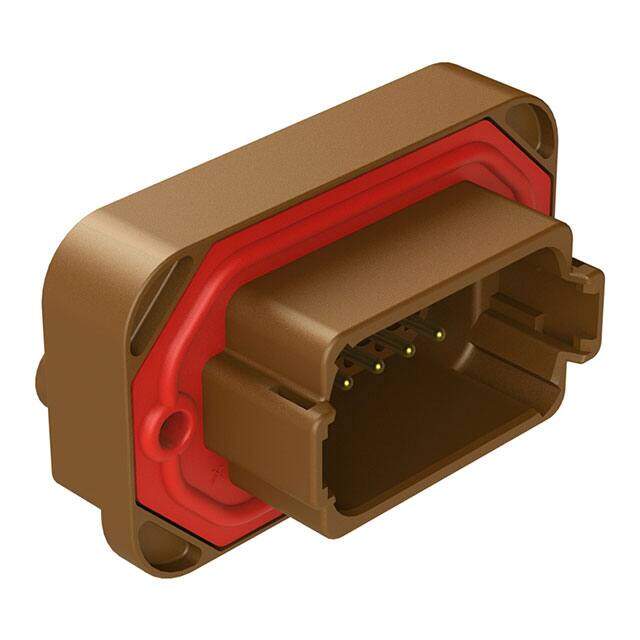

AT15-12PD-BM02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
BoardLock? AT ROHS3Compliant IP67 Board Guide Mating Flange Mounting Flange Potting Wall Connector Receptacle -55C~125C 13A 250V 0.122 3.10mm
PDF
/
Inventory: 6282
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Thermoplastic
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Series BoardLock? AT
Feature Board Guide, Mating Flange, Mounting Flange, Potting Wall
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Applications Automotive, Industrial
Number of Rows 2
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 13A
Ingress Protection IP67
Insulation Height 1.185 30.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Insulation Color Brown
Row Spacing - Mating 0.358 (9.10mm)
Contact Length - Post 0.122 3.10mm
Shrouding Shrouded - 4 Wall
Compliance
RoHS Status ROHS3 Compliant
