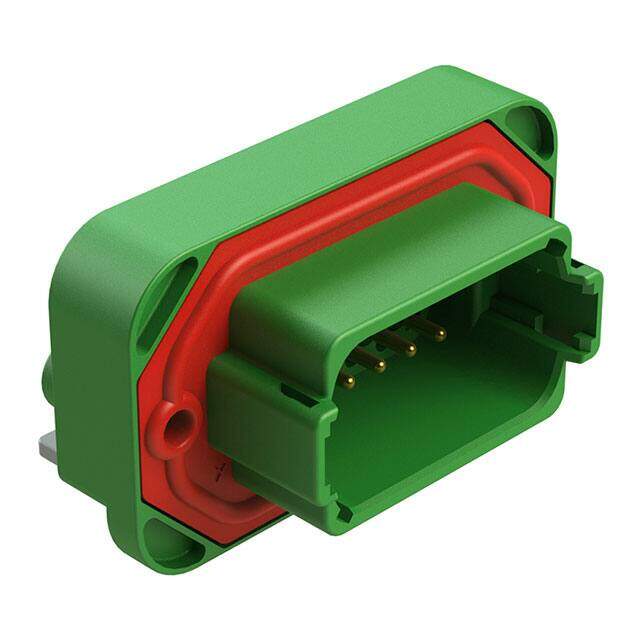

AT13-12PC-BM01 image
Favorite
AT13-12PC-BM01 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 12POS
PDF
/
Buying Options
Total Price: USD $12.85
Unit Price: USD $12.848
≥1 USD $12.848
≥10 USD $11.13288
≥100 USD $10.769088
Inventory: 124
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Contact Finish - Post Gold
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.122 3.10mm
Row Spacing - Mating 0.250 (6.35mm)
Insulation Color Green
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 1.390 35.30mm
Ingress Protection IP67
Current Rating (Amps) 13A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Voltage - Rated 250V
Number of Rows 2
Applications Automotive, Industrial
Number of Positions 12
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Mating Flange, Mounting Flange
Series BoardLock? AT
Packaging Tray
Operating Temperature -55°C~125°C

Physical

Insulation Material Thermoplastic
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
