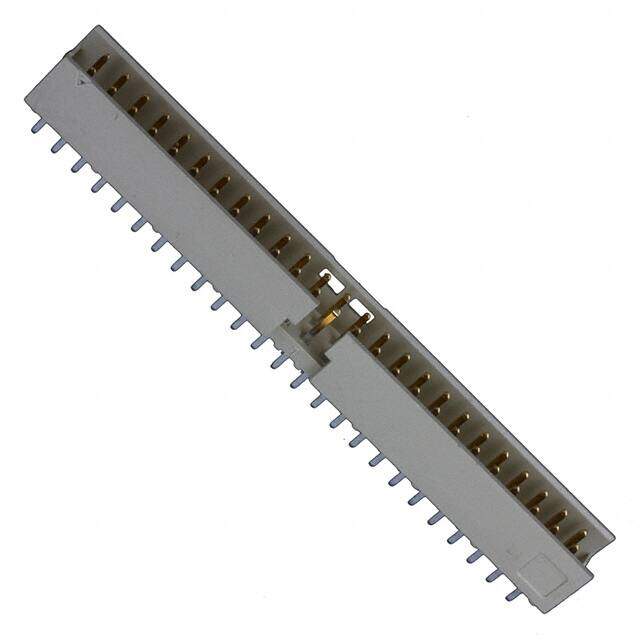

98414-G06-50LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Minitek? 2.00mm RoHS Compliant 2015 Straight Connector Header 105C 2A 200V AC/DC 6.1mm
PDF
/
Buying Options
Total Price: USD $4.76
Unit Price: USD $4.7608
≥1 USD $4.7608
≥10 USD $4.000128
≥100 USD $3.809608
≥500 USD $3.238136
≥1000 USD $2.761942
Inventory: 2210
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Width 6.1mm
Length 52mm
Technical
Mating Post Length 4mm
Insulation Resistance 1GOhm
Lead Length 2.5mm
Housing Color Cream
Contact Gender Male
Contact Length - Mating 0.157 4.00mm
Contact Finish - Post Tin
Number of Contacts 50
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.098 2.50mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Cream
Pitch - Mating 0.079 2.00mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.232 5.90mm
Depth 6.1mm
Orientation Straight
Pitch 2mm
Current Rating (Amps) 2A AC/DC
Contact Type Male Pin
Contact Finish - Mating Gold, GXT?
Fastening Type Latch Holder
Voltage - Rated 200V AC/DC
Gender Male
Number of Rows 2
Color Cream
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 50
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series Minitek? 2.00mm
Published 2015
Packaging Bulk
Physical
Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
