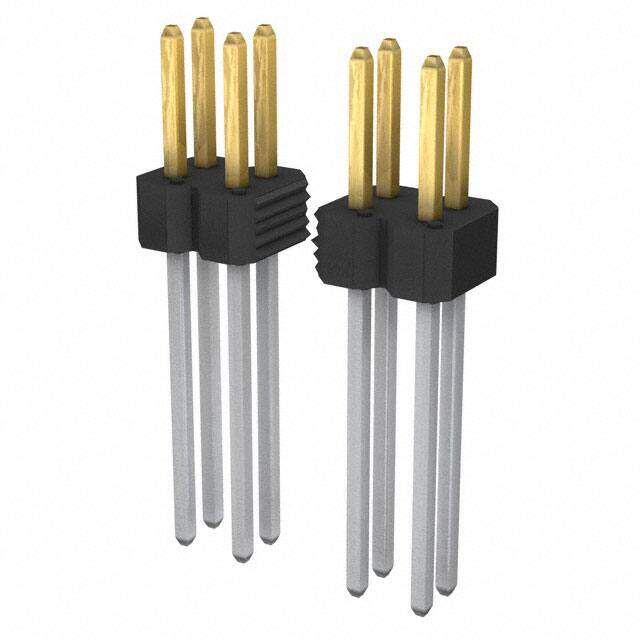

77313-892-72LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Male Pin Rectangular Connector
PDF
/
Inventory: 2353
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating GXT, Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Thermoplastic
Technical
Packaging Bulk
Series BERGSTIK?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 72
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Gold or Gold, GXT?
Contact Type Male Pin
Pitch 2.54mm
Orientation Straight
Depth 4.83mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.502 12.76mm
Shrouding Unshrouded
Number of Contacts 72
Contact Finish - Post Tin
Contact Length - Mating 0.222 5.65mm
Contact Gender Male
Housing Color Black
Lead Length 12.76mm
Overall Contact Length 0.825 20.95mm
Insulation Resistance 5GOhm
Max Voltage Rating (AC) 1.5kV
Mating Post Length 5.65mm
Dimensions
Length 91.44mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
