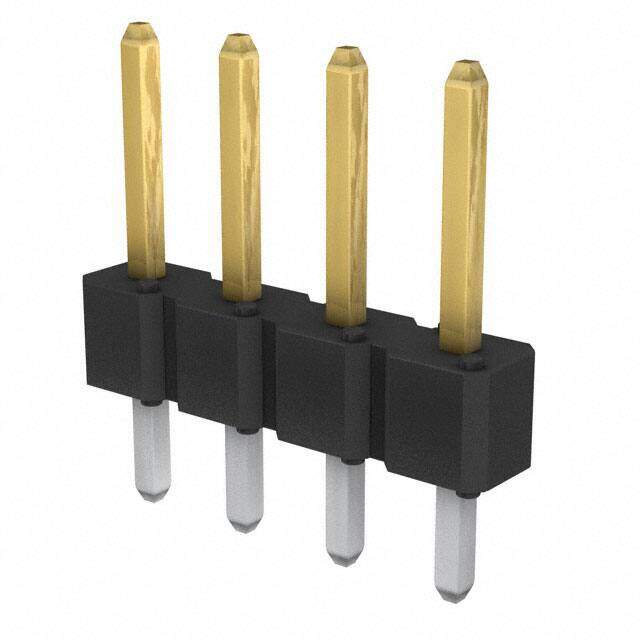

77311-118-04LF image
Favorite
77311-118-04LF image
Favorite

77311-118-04LF

Amphenol ICC (FCI)
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.2376
≥100 USD $0.184888
≥500 USD $0.158506
≥1000 USD $0.13288
Inventory: 1242
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 10.16mm

Technical

Mating Post Length 5.84mm
Max Voltage Rating (AC) 1.5kV
Insulation Resistance 5GOhm
Overall Contact Length 0.450 11.43mm
Lead Length 3.05mm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Number of Contacts 4
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Depth 2.4mm
Orientation Straight
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Gold or Gold, GXT?
Fastening Type Push-Pull
Voltage - Rated 1.5kV
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series BERGSTIK?
Packaging Bulk

Physical

Housing Material Thermoplastic
Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 6 Weeks
