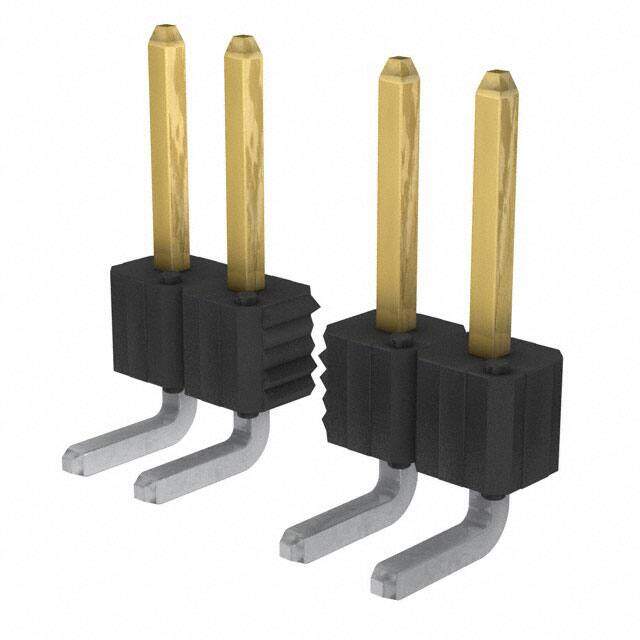

68015-236
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 36POS 2.54MM
PDF
/
Inventory: 6615
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating GXT, Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Housing Material Thermoplastic
Technical
Packaging Bulk
Series BERGSTIK? II
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 36
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Gold or Gold, GXT?
Contact Type Male Pin
Pitch 2.54mm
Orientation Right Angle
Depth 9.9mm
Insulation Height 0.095 2.41mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.090 2.29mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 36
Contact Length - Mating 0.230 5.84mm
Contact Gender Male
Housing Color Black
Lead Length 2.29mm
Insulation Resistance 5GOhm
Max Voltage Rating (AC) 1.5kV
Mating Post Length 5.84mm
Dimensions
Length 91.44mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
