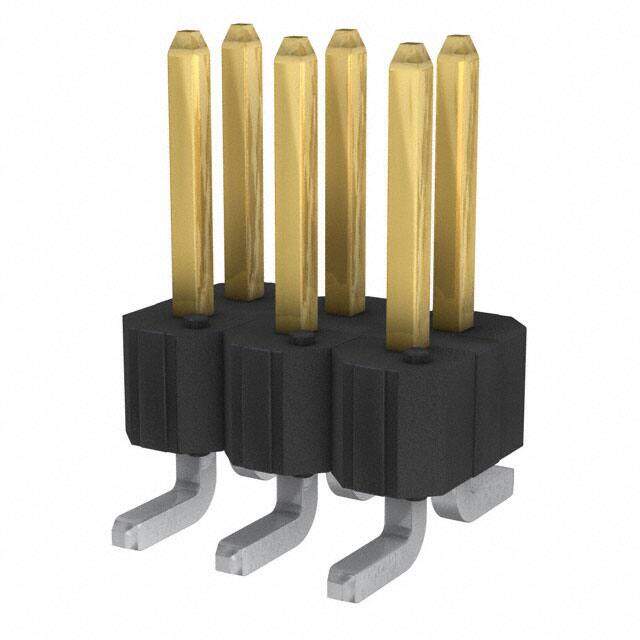

54202-S0803LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.31064
≥100 USD $0.255904
≥500 USD $0.222552
≥1000 USD $0.195906
Inventory: 16602
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating GXT, Gold
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Housing Material Thermoplastic
Technical
Packaging Bulk
Series BERGSTIK?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Gold or Gold, GXT?
Contact Type Male Pin
Pitch 2.54mm
Orientation Straight
Depth 4.83mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number of Contacts 6
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
Contact Gender Male
Housing Color Black
Insulation Resistance 5GOhm
Max Voltage Rating (AC) 1.5kV
Mating Post Length 5.84mm
Dimensions
Length 7.62mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
