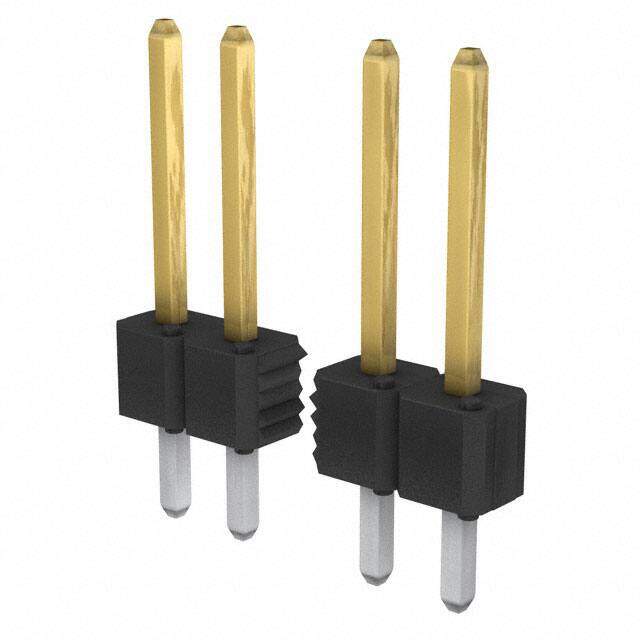

54101-G3008A03LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Poly Bag
PDF
/
Inventory: 8975
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Contact Plating GXT, Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Technical
Packaging Tape & Reel (TR)
Series BERGSTIK?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Color Black
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold or Gold, GXT?
Contact Type Male Pin
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded 7
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number of Contacts 8
Contact Finish - Post Tin
Contact Length - Mating 0.318 8.08mm
Overall Contact Length 0.538 13.67mm
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
