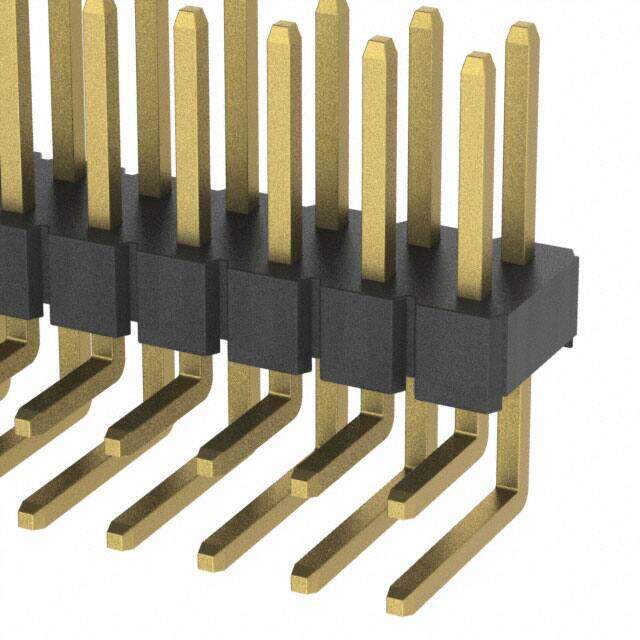

PH2RA-34-UA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 34POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.57992
≥100 USD $0.477928
≥500 USD $0.415606
≥1000 USD $0.342874
≥3000 USD $0.301312
Inventory: 1812
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series PH2RA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 34
Number of Rows 2
Voltage - Rated 250VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.197 5.00mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 1.7 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.235 5.97mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.197 inch
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 1000VAC V
Durability 1000 Cycles
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
