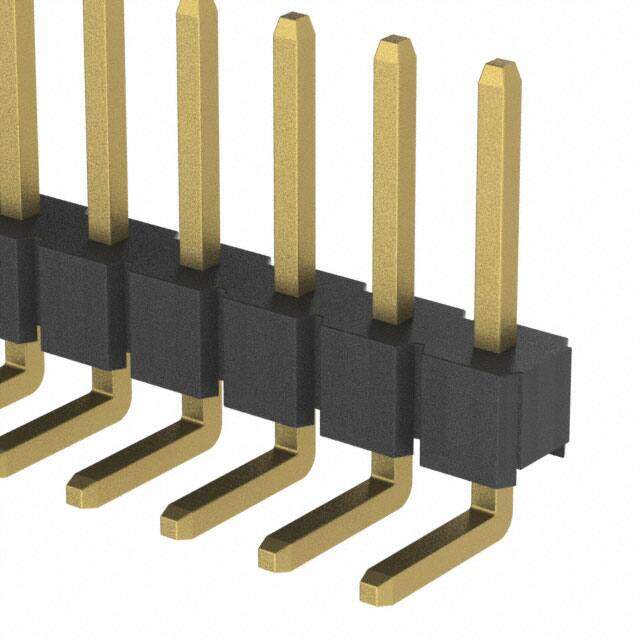

PH1RB-10-UA image
Favorite
PH1RB-10-UA image
Favorite

PH1RB-10-UA

Adam Tech
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole Bag
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.2376
≥100 USD $0.185064
≥500 USD $0.158646
≥1000 USD $0.132211
≥3000 USD $0.113326
Inventory: 1166
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash

Technical

Insulation Resistance 5000000000Ohm
Contact Resistance 20mOhm
Body Breadth 0.098 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.235 5.97mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.098 2.50mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250VAC
Number of Rows 1
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PH1RB
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
