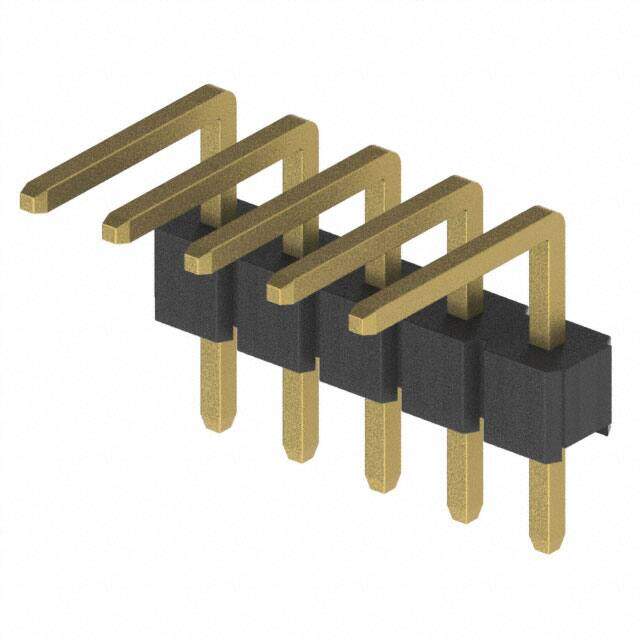

PH1RA-05-UA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 5POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.17
Unit Price: USD $0.1672
≥1 USD $0.1672
≥10 USD $0.13816
≥100 USD $0.106304
≥500 USD $0.089954
≥1000 USD $0.073594
≥3000 USD $0.065419
Inventory: 8928
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series PH1RA
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.098 2.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.236 6.00mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
Body Depth 0.098 inch
Contact Resistance 20mOhm
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
