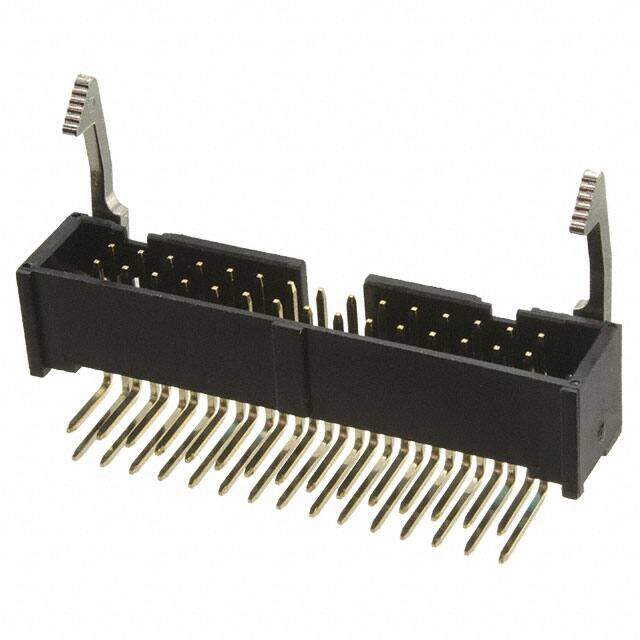

BHR-30-HUA-ML
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 30POS 2.54MM
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.2176
≥1 USD $2.2176
≥10 USD $1.803833
≥100 USD $1.72187
≥500 USD $1.434849
≥1000 USD $1.229879
≥3000 USD $1.090487
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.118 inch
Contact Finish Thickness - Mating Flash
Technical
Durability 500 Cycles
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Body Depth 0.575 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.8 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.354 9.00mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Long
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Voltage - Rated 350VAC
Number of Rows 2
Number of Positions 30
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series BHR
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Mounting Option 2 LOCKING
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
