2PH1-16-UA-SMT-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

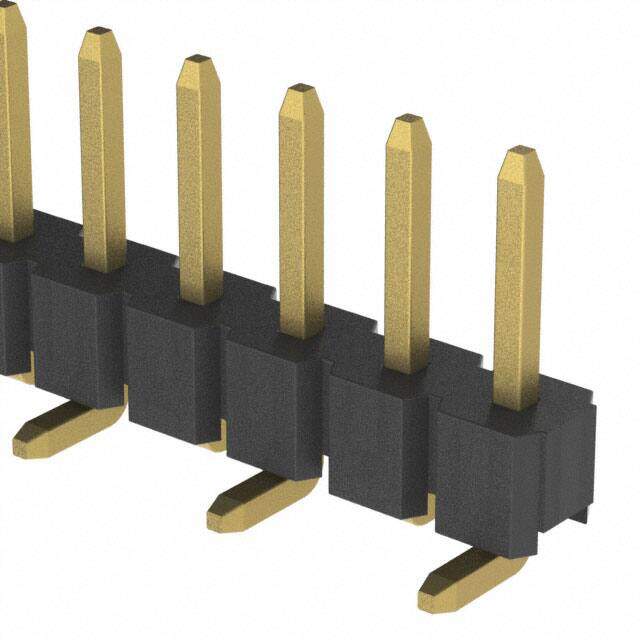

CONN HEADER SMD 16POS 2MM
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
≥10 USD $0.85008
≥100 USD $0.763576
Inventory: 204
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Mating Contact Pitch 0.079 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 20mOhm
Body Depth 0.059 inch
Body Breadth 0.079 inch
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.157 4.00mm
Number Of PCB Rows 2
Shrouding Unshrouded
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.079 2.00mm
Terminal Pitch 3.9878mm
Total Number of Contacts 16
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Voltage - Rated 250VAC
Number of Rows 1
Number of Positions 16
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series 2PH1
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
