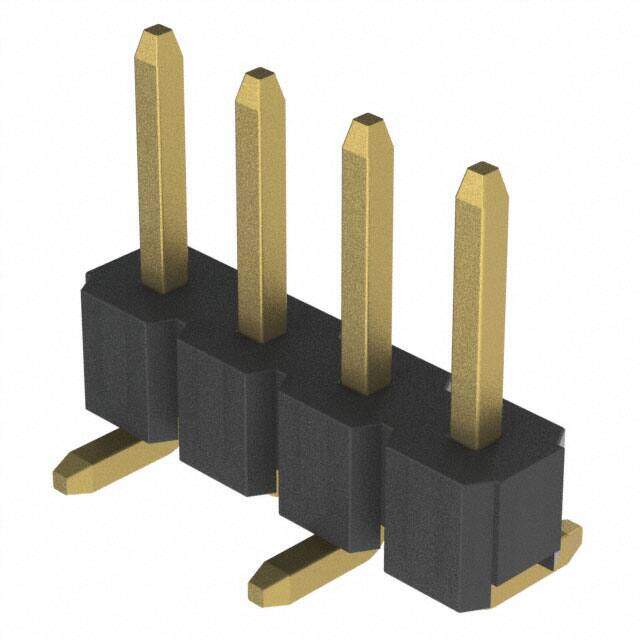

2PH1-04-UA-SMT-B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.200767
≥1 USD $0.200767
≥10 USD $0.189402
≥100 USD $0.178683
≥500 USD $0.168567
≥1000 USD $0.159024
Inventory: 5395
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series 2PH1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Total Number of Contacts 4
Terminal Pitch 3.9878mm
Insulation Height 0.079 2.00mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.157 4.00mm
PCB Contact Pattern STAGGERED
Body Breadth 0.079 inch
Body Depth 0.059 inch
Contact Resistance 20mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.079 inch
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
